Safety Mats Industrial Equipment Ground Foot Sensing Signal Transmission Pressure Sensitive Safety Mat Safety Switch Floor Mats Anti Static Carpet Switch Floor Work Safety Pressure Sensor Mats Pressure Sensitive Floor Safety Mats
The surface has anti slip settings, will not peel off, and is resistant to high temperature welding slag
Maximum allowable use of 2 carpets in series
Can provide special external dimensions without the need for accessory resistors
Compliant with EN1760-1 and ISO13849-1 standards
Used in conjunction with safety relays, the control level can reach EN9547-1, Level 3
Maximum response time of 25ms
- Overview
- Display
- Recommended Products
What benefits can we bring to our customers?
1.We are a manufacturer that can offer customers preferential prices and have an absolute price advantage
2. We can create customized drawings for customers free of charge until they are satisfied.
3. We can provide comprehensive online guidance to solve customers' practical problems.
4. Our company can provide the most favorable, efficient, and customer friendly transportation solutions.
5. Our company accepts various payment methods, such as VTB, Visa, Paypal, China UnionPay, etc
What advantages do we have?
1.We have nearly 20 years of production experience and are well versed in product parameters, able to solve any difficult problems for customers.
2. We have the most advanced equipment and instruments to ensure the accuracy and stability of product data.
3. We have 50 professional technical experts and teams, constantly optimizing and updating our products.
4.Our company has over 200 staff members, each with clear job responsibilities to ensure timely delivery of products.
Specifications:
| Detection method | pressure sensing method |
| Testing quality | above 30kg |
| Maximum allowable load | 2000N (EN1760-1 requirement) |
| Mechanical lifespan | not less than 1 million cycles |
| Material | PVC (polyvinyl chloride) |
| Operating environment temperature | -20-60 ℃ |
| Protection level | IP65 |
| Quality | Approximately 2.4kg/m ² |
| Surface material | Polyurethane, black PU black |
| Suitable height | 15mm |
| Weight | 17kg/m ² |
| Cable | 4 * 0.3mm ²/M122 * 0.3mm ² |
| Cable length | 1M |
| Response time | 25ms |
| Allowable load | 2000N/80mm |
| Invalid edge | Less than 10mm |
Quick Detail:pressure safety mat safety mat sensor safety carpet safety switch floor mats
Safety carpet (safety floor mat)anti static flooring mat pressure safety mats
The safety carpet generates a switch signal by detecting sufficient pressure to achieve regional safety protection. Safe and reliable, with free and convenient installation.
Description:Safety Mats Safety Mats Safety Mats pressure mats Pressure Sensitive Floor Mats pressure mat switch Foot Induction Safety Mat floor work mats Safety Mats
A safety carpet (safety floor mat) is a pressure-sensitive protective device. When the surface protection area is subjected to external pressure, the safety carpet immediately sends out a conductive signal. The controller will send a stop signal to the machine within 2.5 milliseconds, and the protected machine will stop its movement, thereby protecting people or machines. floor work mats Safety Mats
Applications:Safety Mats Safety Mats Safety Mats pressure mats Pressure Sensitive Floor Mats pressure mat switch Foot Induction Safety Mat floor work mats Safety Mats
Welding robots, rubber and plastic machinery, assembly machinery, material processing, packaging machinery, stamping machinery, pressure machinery, automotive manufacturing, steel metallurgy industry, etc.Pressure Sensitive Floor Mats pressure mat switch Foot Induction Safety Mat floor work mats Safety Mat
Competitive Advantage:pressure safety mat safety mat sensor safety carpet safety switch floor mats
Has excellent resistance to corrosion from various acids, alkalis, salts, and oil stains, and the entire structure has excellent waterproof performance.

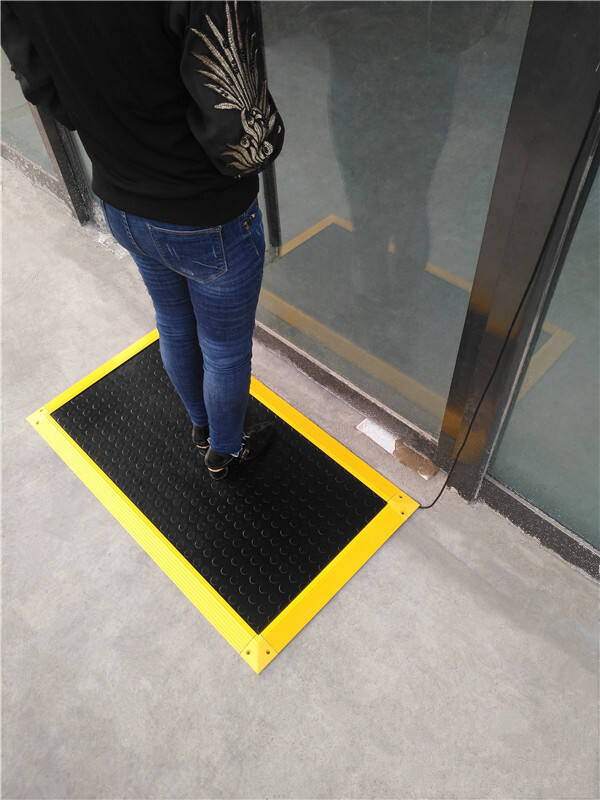

Product actual photo:
Factory live shots：
Exhibition Display：
