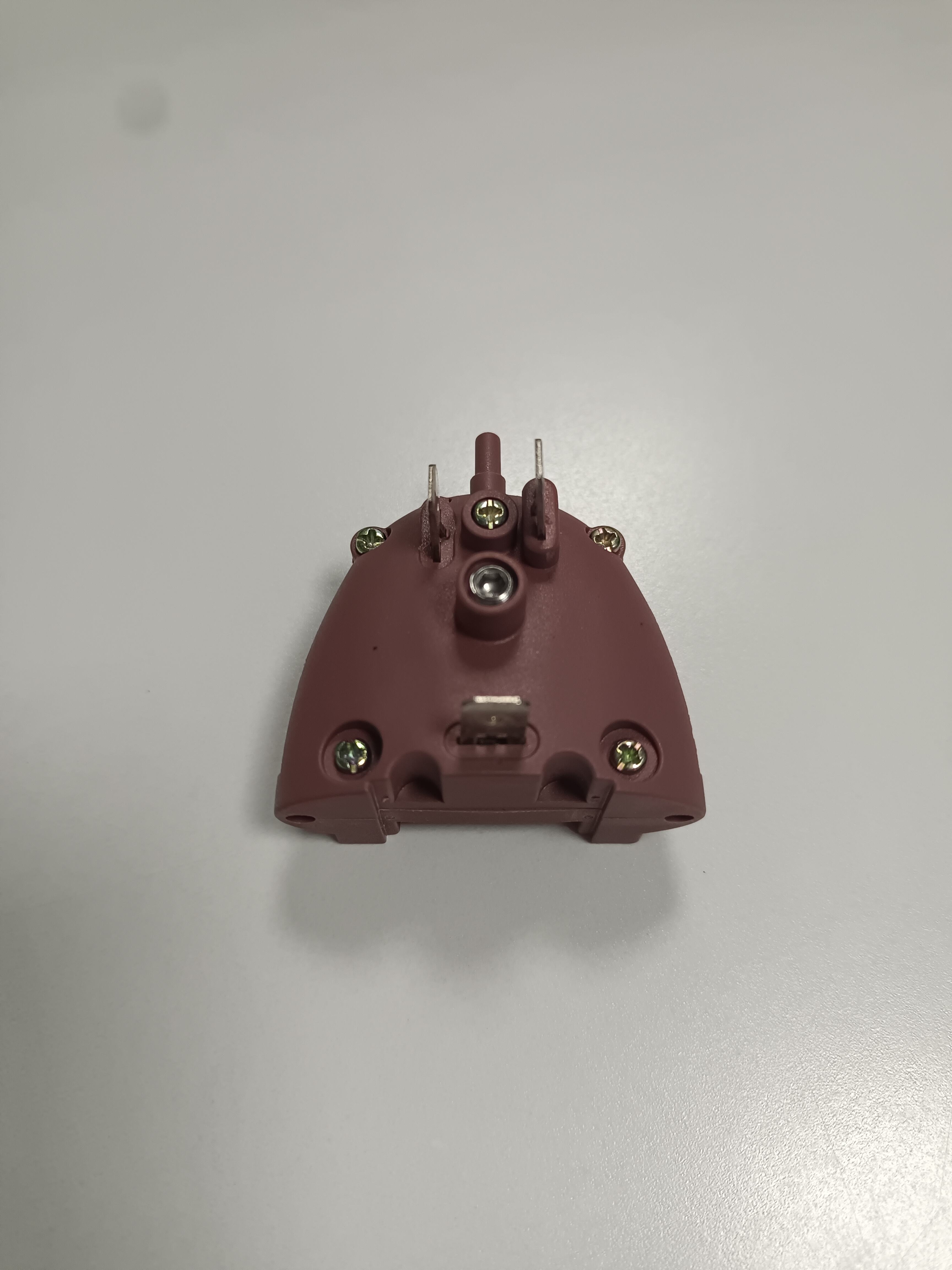

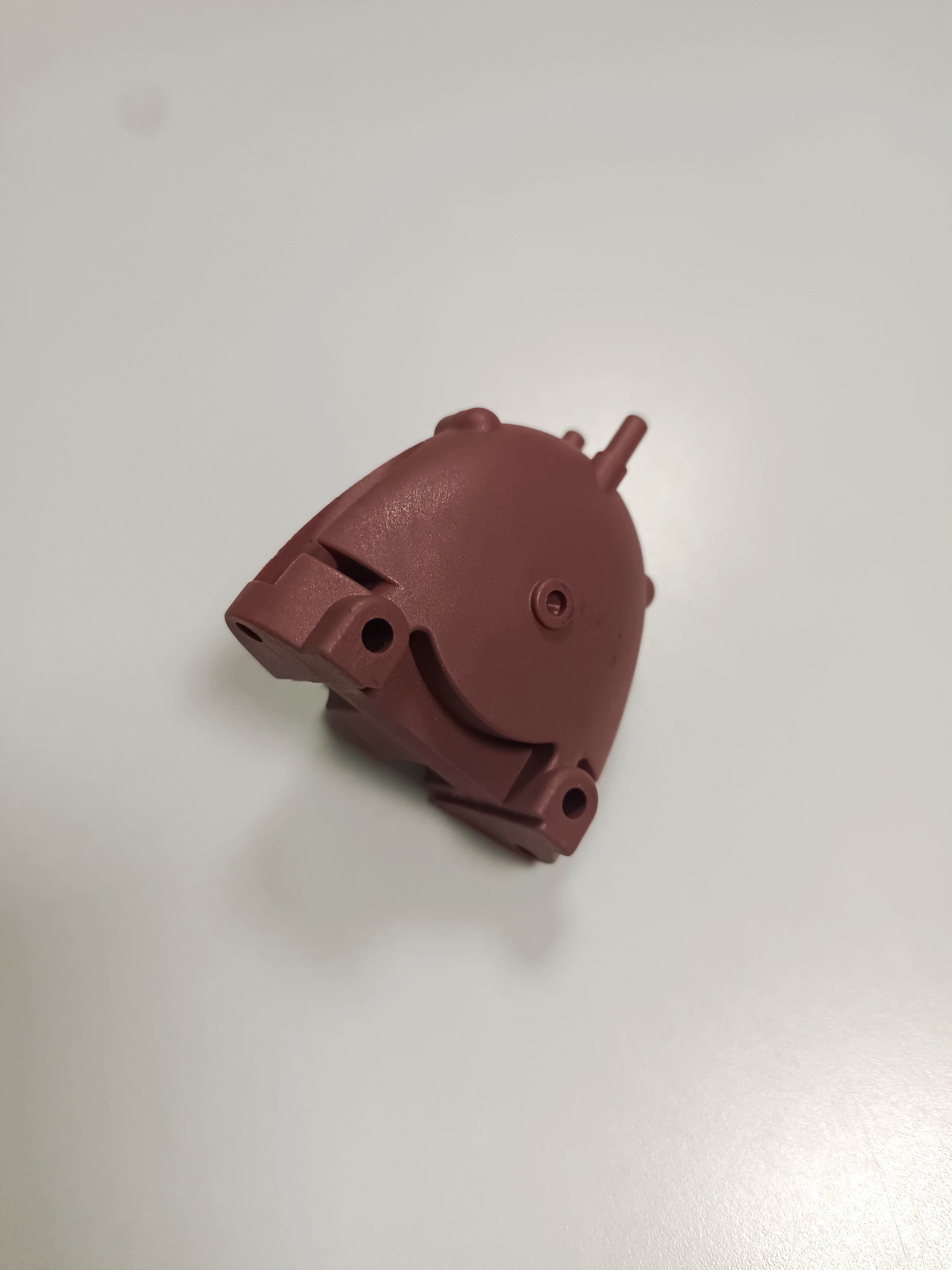

KT-DE50MX 500mbar 24V 30MA Secure Edge Air pressure wave switch

1. General product information

2. Product commercial terms

pressure wave switch pressure wave switch pressure wave switch pressure wave switch pressure wave switch pressure wave switch pressure wave switch

3. Product introduction

• Quick Detail:

  Used for connecting secure edges

• Description:

  The pressure wave switch is generated by the impact of natural air pressure in the trachea, which triggers a pneumatic wave and sends a signal to the controller through the copper foil in the switch.

• Applications:

  Residential barrier gates, bus doors, various automatic door industries

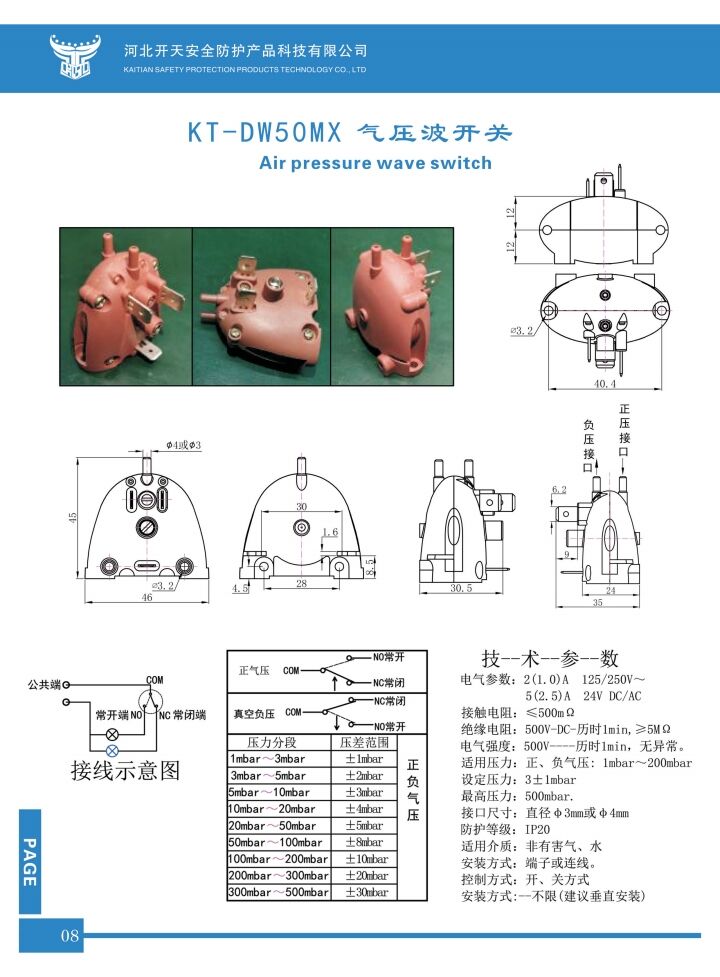

• Specifications:

  Electrical parameters	2 (1.0) A 125/250V~5 (2.5) A 24V DC/AC
  Contact resistance	≤ 500m ohms
  Insulation resistance	500V-DC - lasting for 1 minute, ≥ 5M ohms
  Electrical strength	500V - lasting for 1 minute without any abnormalities
  Applicable pressure	Positive and negative air pressure: 1mbar-200mbar
  Set air pressure	3 ± 1mbar
  Maximum pressure	500mbar
  Interface size	diameter 3mm or 4mm
  Protection level	IP20
  Applicable media	Non harmful gas, water
  Interface size	diameter 3mm or 4mm
  Installation method	Terminal or connection
  Control mode	on/off mode
  Installation method	arbitrary (vertical installation recommended)

• Competitive Advantage:

  Cheap price and good sealing performance

•
• Packaging Method
•
• Cooperative Partner
•
• Exhibition Display
•
• Payment Method
•
• Transport Mode
•
• FAQ
  1. who are we?
  We are based in Hebei, China, start from 2013,sell to Eastern Europe(20.00%),Northern Europe(17.00%),North America(10.00%),Mid East(9.00%),South Asia(8.00%),South America(8.00%),Eastern Asia(7.00%),Western Europe(6.00%),Southern Europe(6.00%),Southeast Asia(6.00%),Central America(3.00%). There are total about 51-100 people in our office.

  2. how can we guarantee quality?
  Always a pre-production sample before mass production;
  Always final Inspection before shipment;

  3.what can you buy from us?
  Safety Edges Switch,Safety Contact Switch,Safety Mat Switch,Anti-Pinch Sensor Switch,Safety Pu Foam Bumper,Pressure Sensitive Switch

  4. why should you buy from us not from other suppliers?
  We can design and develop products synchronously with customers, and we can customize products with broken feet and have the ability of experimental certification.We have cooperated with many powerful robot companies around the world.Looking forward to coo

  5. what services can we provide?
  Accepted Delivery Terms: FOB；
  Accepted Payment Currency:USD,EUR;
  Accepted Payment Type: T/T,L/C;
  Language Spoken:English,Chinese
