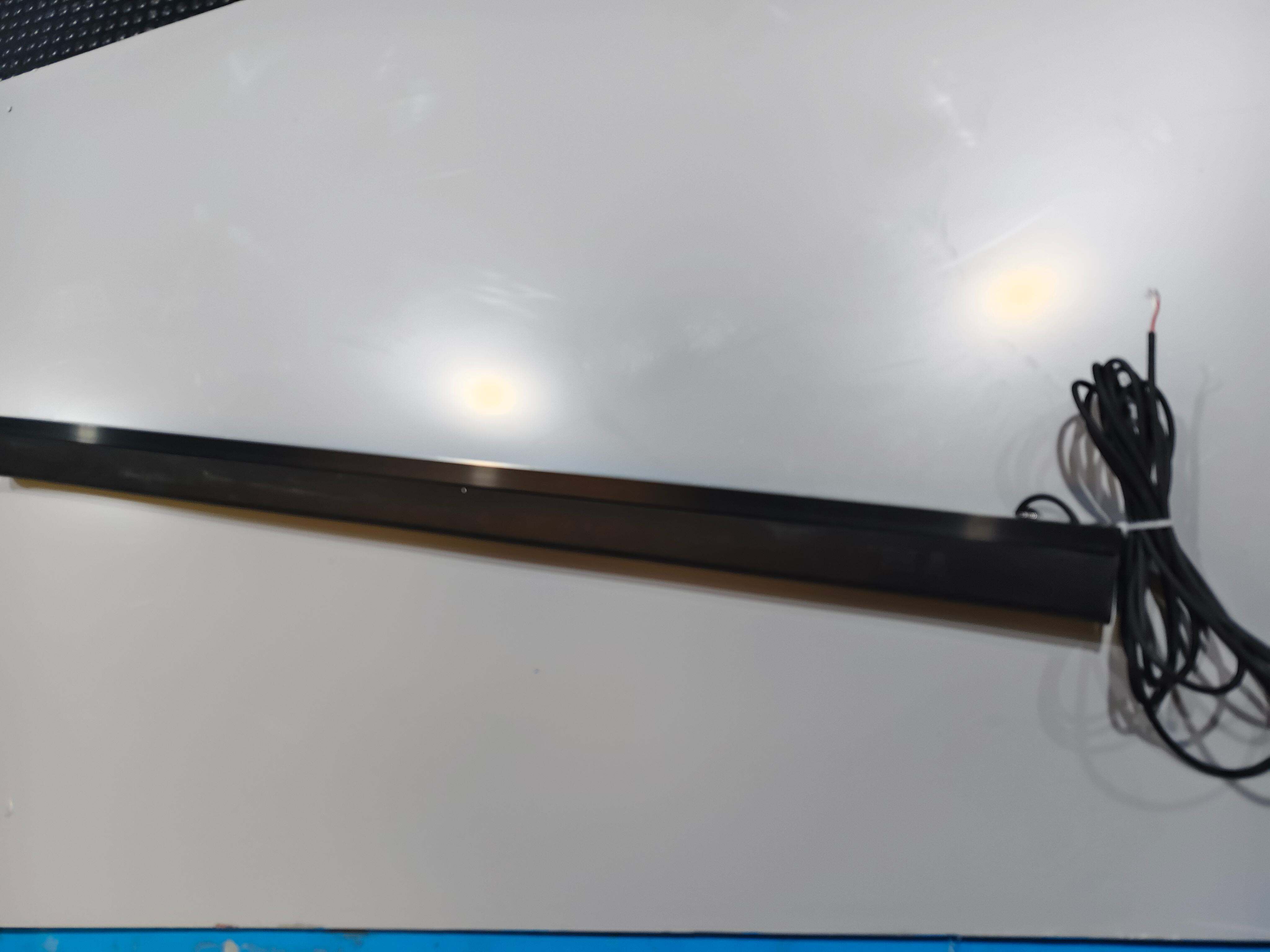

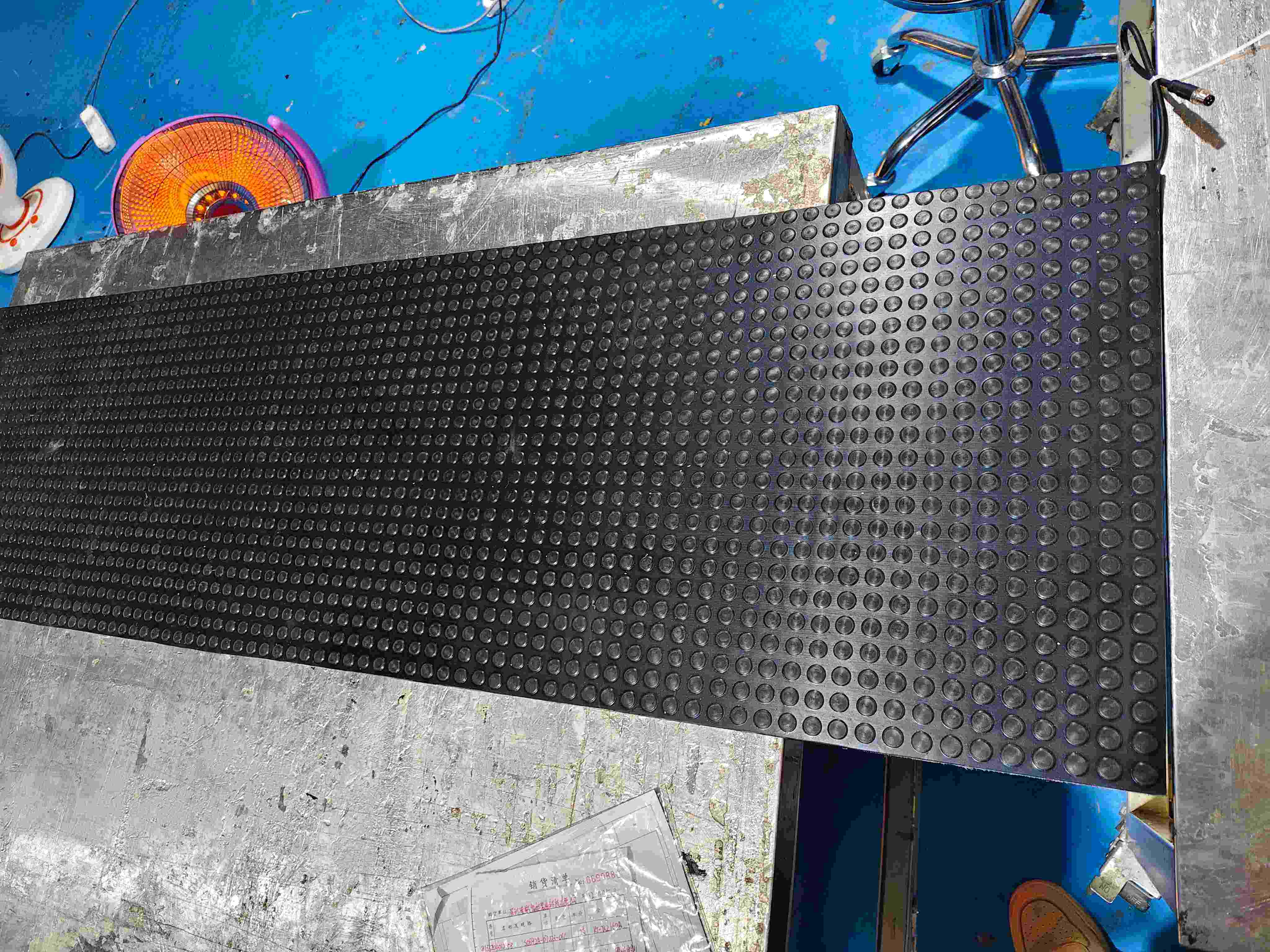

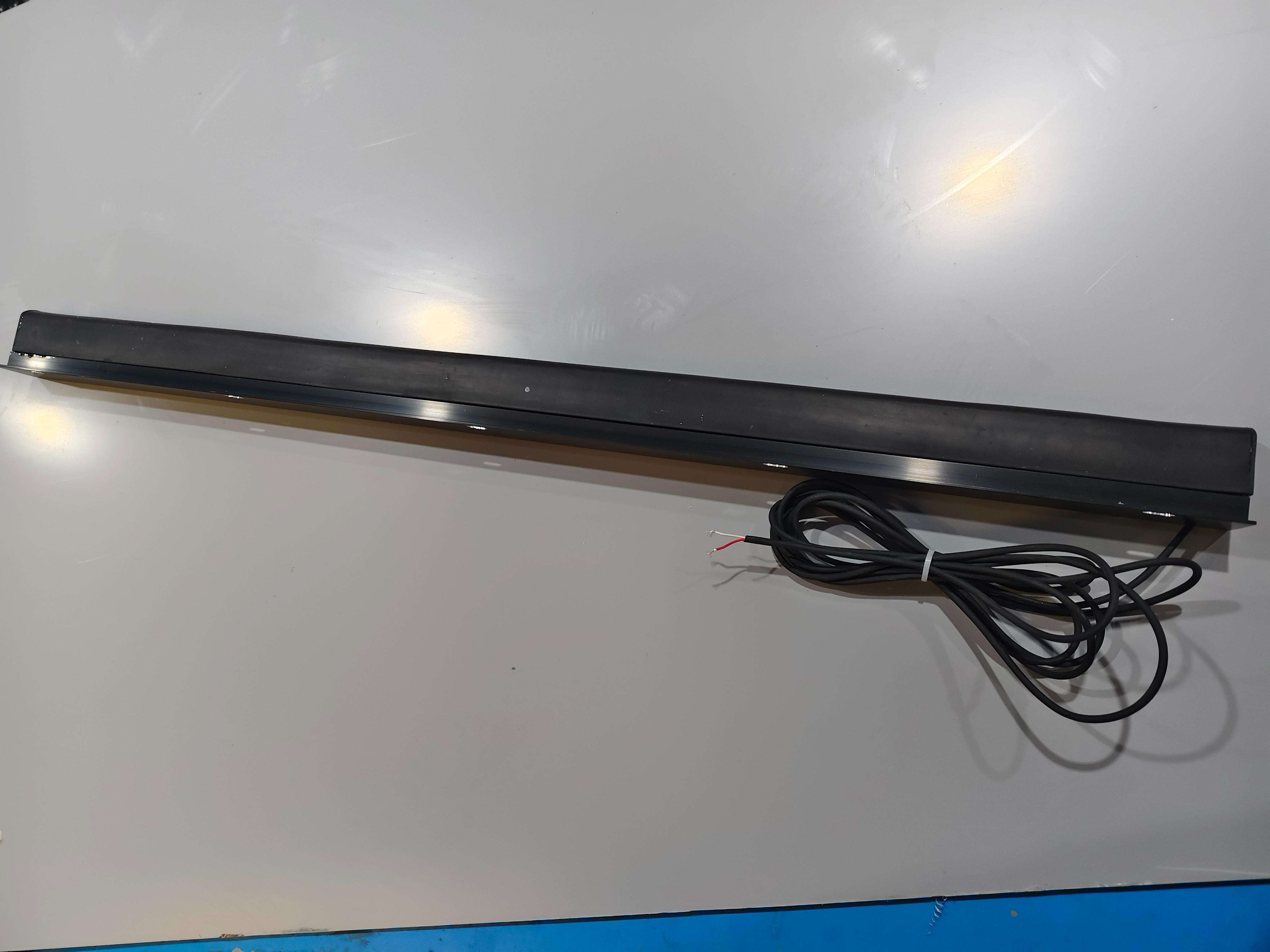

Safety Edge/Pressure-Sensitive Switch/Collision Switch/Safety Carpet

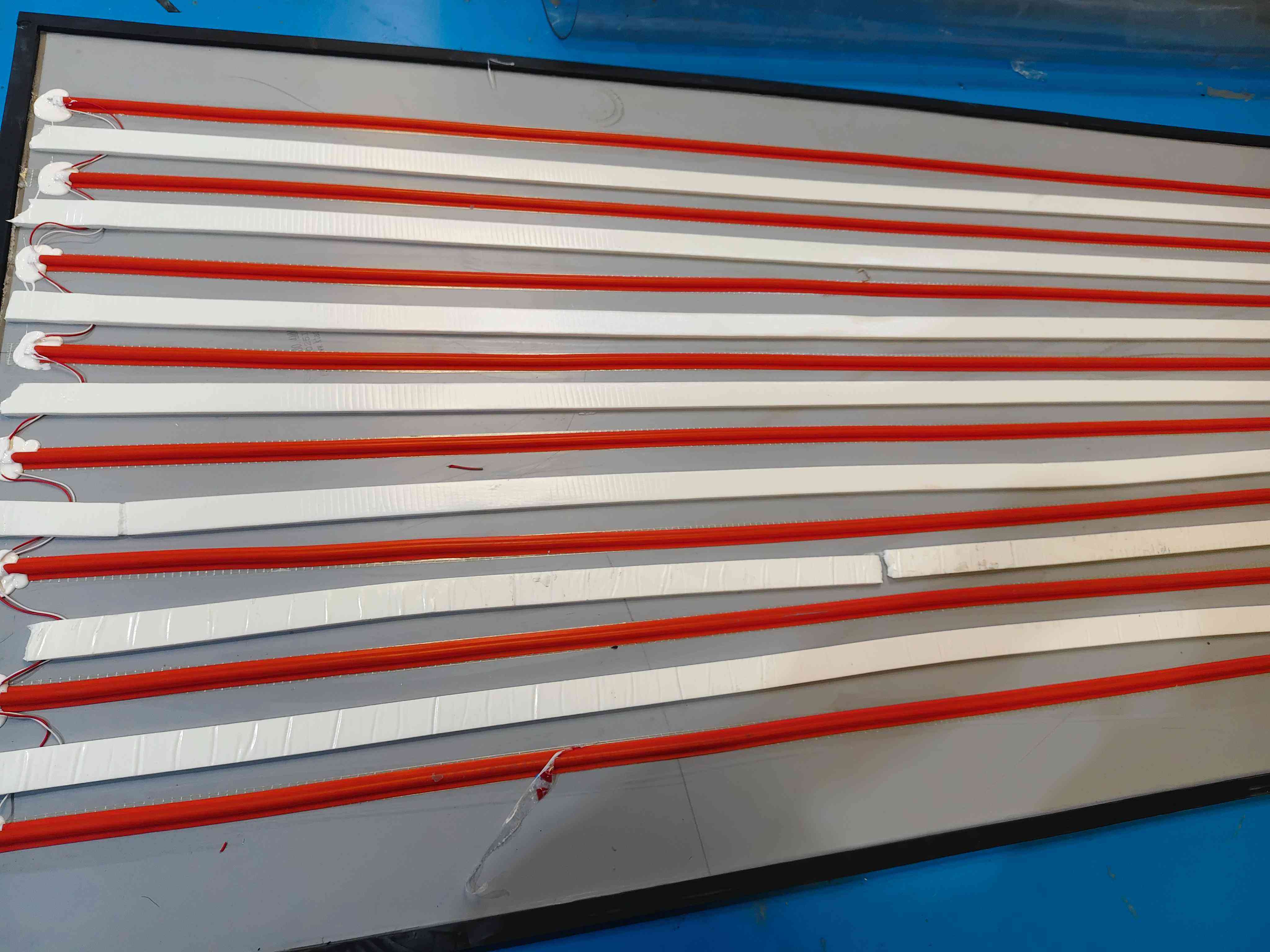

The safety edge contact strip is composed of two elements made of conductive silicone, separated by a specific distance. The end of the contact strip can be connected to different end pieces depending on its application purpose. After inserting it into the rubber sleeve and connecting it to the switch, all components form a complete system. The safety edge can be easily and quickly assembled by users themselves. Due to the various lengths available in our production, we are very flexible in terms of assembly.

Product function: Applying vertical pressure to the safety edge causes the conductive bodies inside the contact strip to come into contact with each other, resulting in changes in resistance and current, which are further analyzed by the control mechanism. If installed correctly, the safety edge will not leak water. As long as the contact strip is not damaged, even if the safety edge is damaged, it can still function normally.

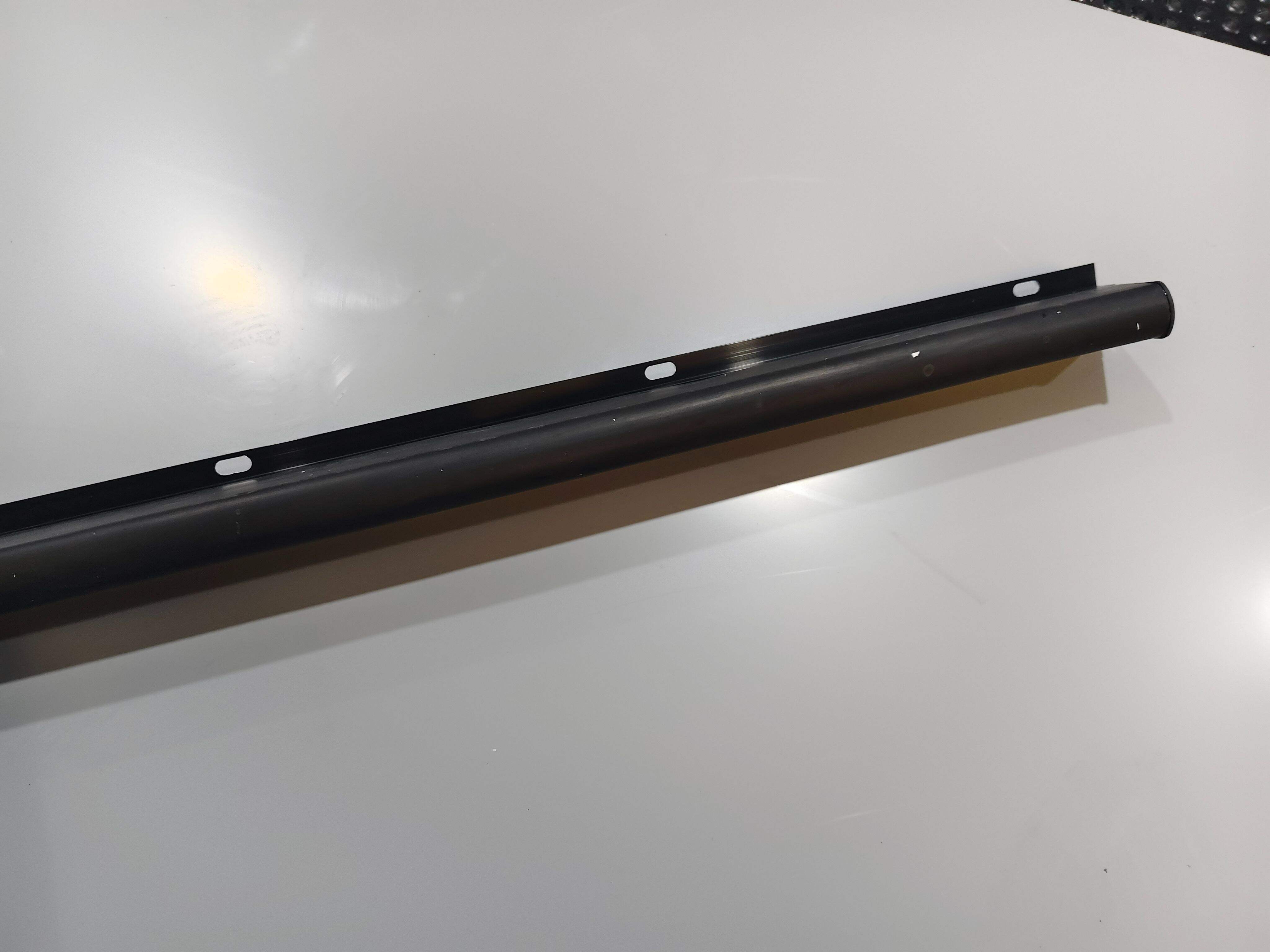

The safety edge is a flexible and bendable strip or circular object. It can be fixed on the edges of moving parts that pose risks of compression and shearing, such as tire forming machines, elevator safety doors, machine tool workbenches, and electric doors. When the safety edge moving parts are installed and hit the operator or the operator hits the moving parts, these flexible safety edges will be compressed and send a signal to the power source to stop the movement of these parts.
